EPC-702-無風扇嵌入式工控機

Intel® Skylake/Kabylake U系列處理器
2 * 260-pin Dual-channel DDR4 2133MHz SO-DIMM 支持32 GB
2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,
1 *音源輸入, 1 * 麥克風+音源輸出組合
主闆闆型: uTX (117x112mm)
DC-12V_60W 電源

參數品牌：星屹

産品參數

品牌：星屹

型号：EPC-702

起訂量：1

單位：台

我知道了

13671665567

在線客服

客服一

産品詳情

産品特點

産品單頁詳情下(xià)載請點擊

提取碼：1111

MB Model	JNU792C-7100 Core i3-7100U Processor (Default)
MB Model	JNU792V-3965 Celeron 3965U Processor
BIOS	AMI 16MB SMT Flash ROM
CPU/Chipset	Intel® Skylake/Kabylake U-series Processor (TDP15W)
CPU/Chipset	Notes : When the system runs, CPU will automatically adjust
CPU/Chipset	its working clock frequency according to changing workload.
Memory	2 * 260-pin Dual-channel DDR4 2133MHz SODIMM up to 32GB
Storage	1 * 2.5” SATAIII 6Gb/s internal drive bay (only support 2.5″
Storage	HDD with a height ≤ 10mm)
Storage	1 * full-size mSATA/Mini-PCIe shared slot
Network	1 * Intel i211AT GbE, 1 * Intel i219LM GbE
Network	1 * half-size Mini-PCIe slot (for WiFi model installed)

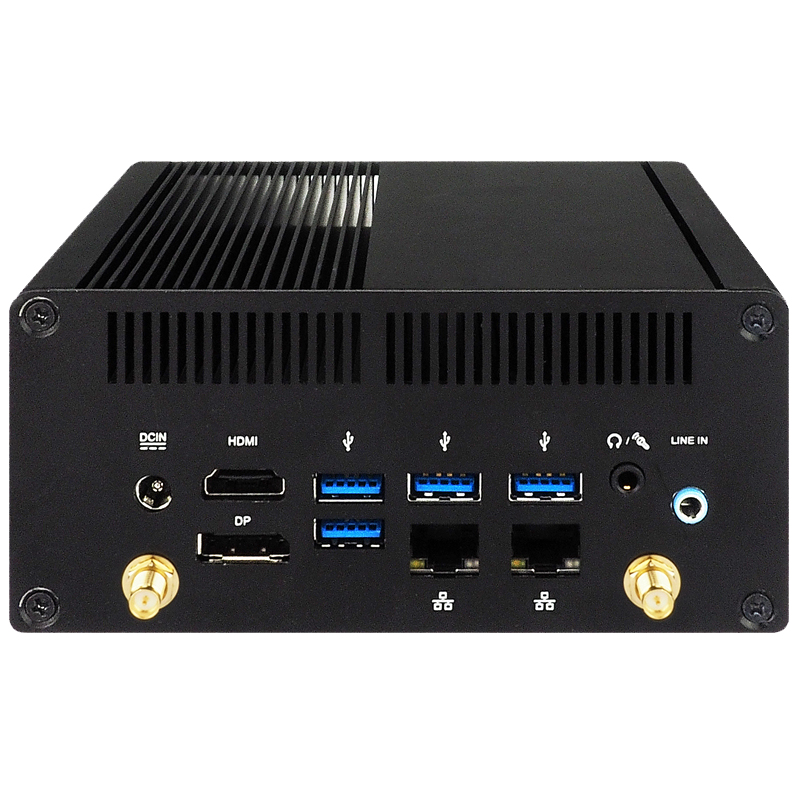

Rear Panel I/O	4 * USB3.0 (COM Series)
Rear Panel I/O	2 * USB3.0, 2 * USB2.0 (VGA Series)
Rear Panel I/O	1 * HDMI 1.4 (max. 4096 x 2304@24Hz resolution)
Rear Panel I/O	1 * DP (Max. 4096 x 2304@60Hz resolution) (COM Series)
Rear Panel I/O	2 * RJ45
Rear Panel I/O	1 * Line-in, 1 * MIC+Line-out Combo (Realtek ALC662VD)
Rear Panel I/O	2 * Antenna holes (WiFi only)
Rear Panel I/O	1 * DC-in jack

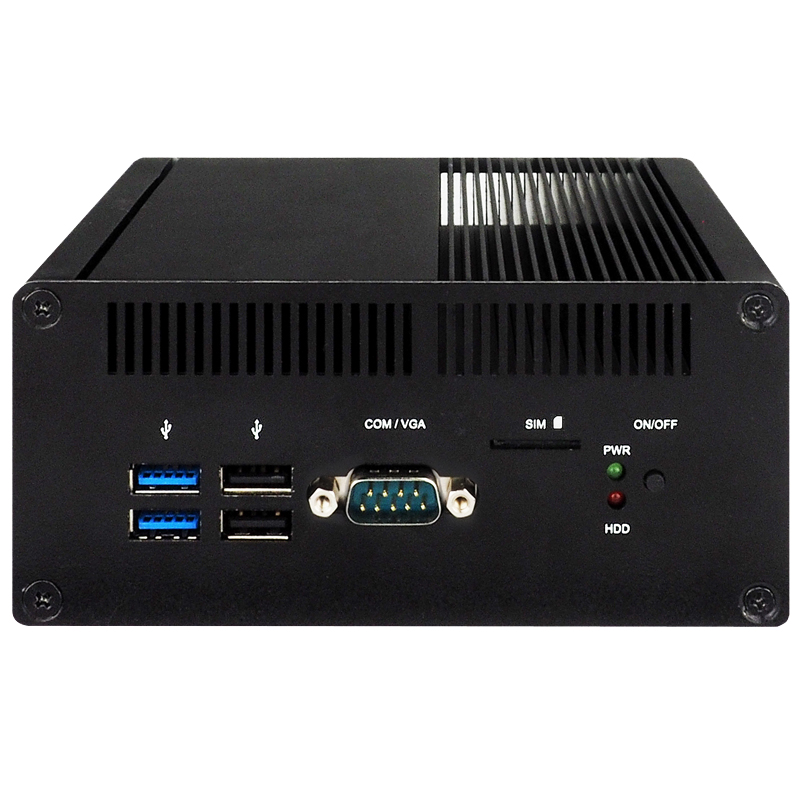

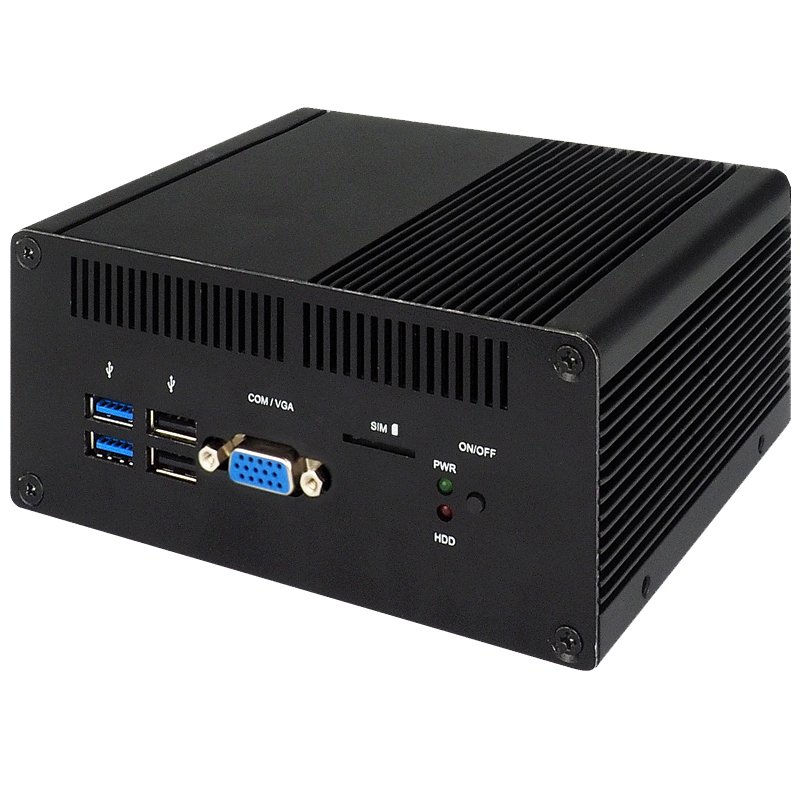

Front Panel I/O	1 * Power button
Front Panel I/O	1 * Power LED, 1 * HDD LED
Front Panel I/O	1 * SIM Card Slot
Front Panel I/O	2 * USB2.0, 2 * USB3.0
Front Panel I/O	1 * COM (RS232/422/485) (COM Series only)
Front Panel I/O	1 * VGA (Max. resolution: 1920 x 1200@60Hz) (VGA Series only)
Power Source	AC to DC Adapter / DC12V_5A_60W
Power Source	AC 90~240V input
Compliance	CE, FCC, LVD, RoHS, ErP Ready
Temperature	Operating Temperature: -20 ~ 60° C (Under the condition
Temperature	of using mSATA or SSD)
Temperature	Operating Temperature: 0 ~ 50° C (Under the condition
Temperature	of using 2.5” SATA HDD)
Temperature	(The test environment is closed and windless)
Temperature	Storage Temperature: -20 ~ 70° C
Humidity	Between 40% and 60%, non-condensing
Dimensions	144 (W) x 116.9 (D) x 65 (H) mm
Packing	Net Weight: 1.8KG
Packing	Gross Weight: 2.8KG
Packing	Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support	Skylake-U CPU support Win7, Win8, Win10.
OS Support	Kabylake-U CPU only support Win10.
Warranty	2 Year limited warranty

Intel® Skylake/Kabylake U系列處理器
2 * 260-pin Dual-channel DDR4 2133MHz SO-DIMM 支持32 GB
2 * USB2.0, 6 * USB3.0, 1 * COM, 1 * DP, 1 * HDMI, 2 * RJ45,1 *音源輸入, 1 * 麥克風+音源輸出組合
主闆闆型: uTX (117x112mm)
DC-12V_60W 電源
