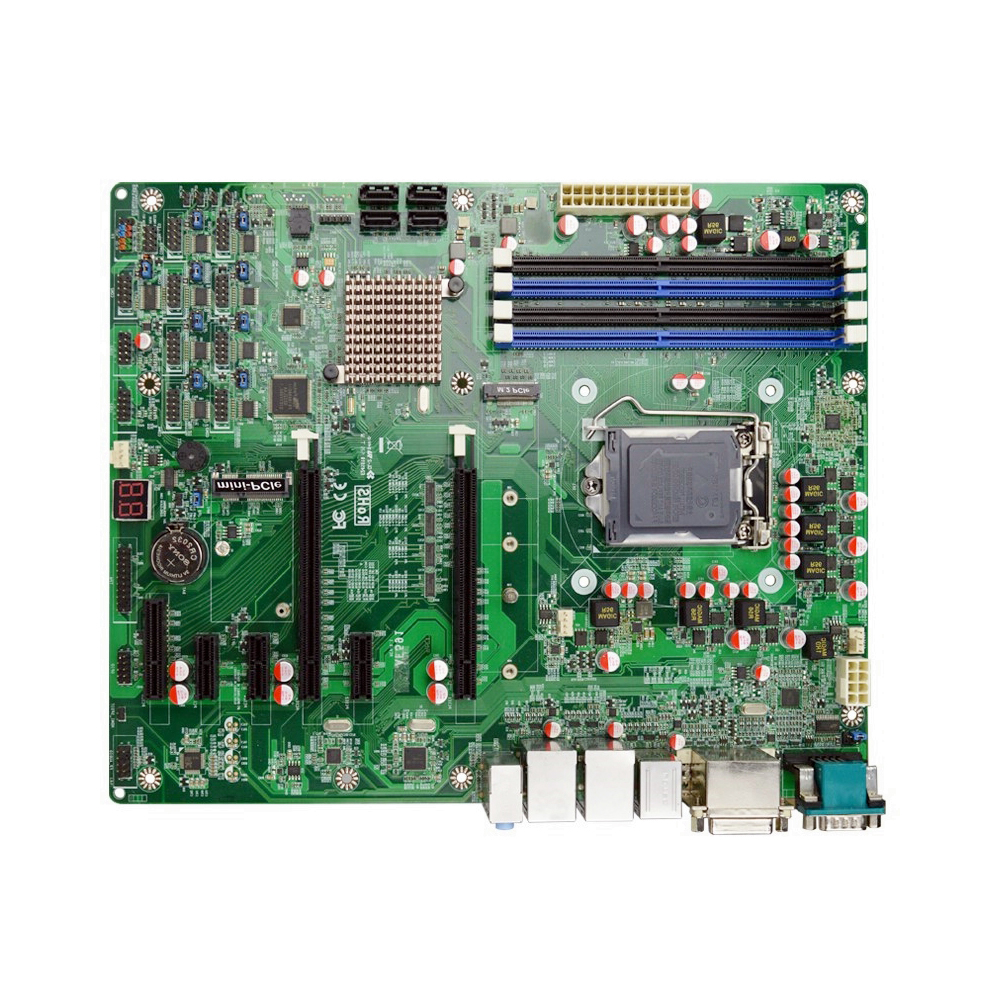

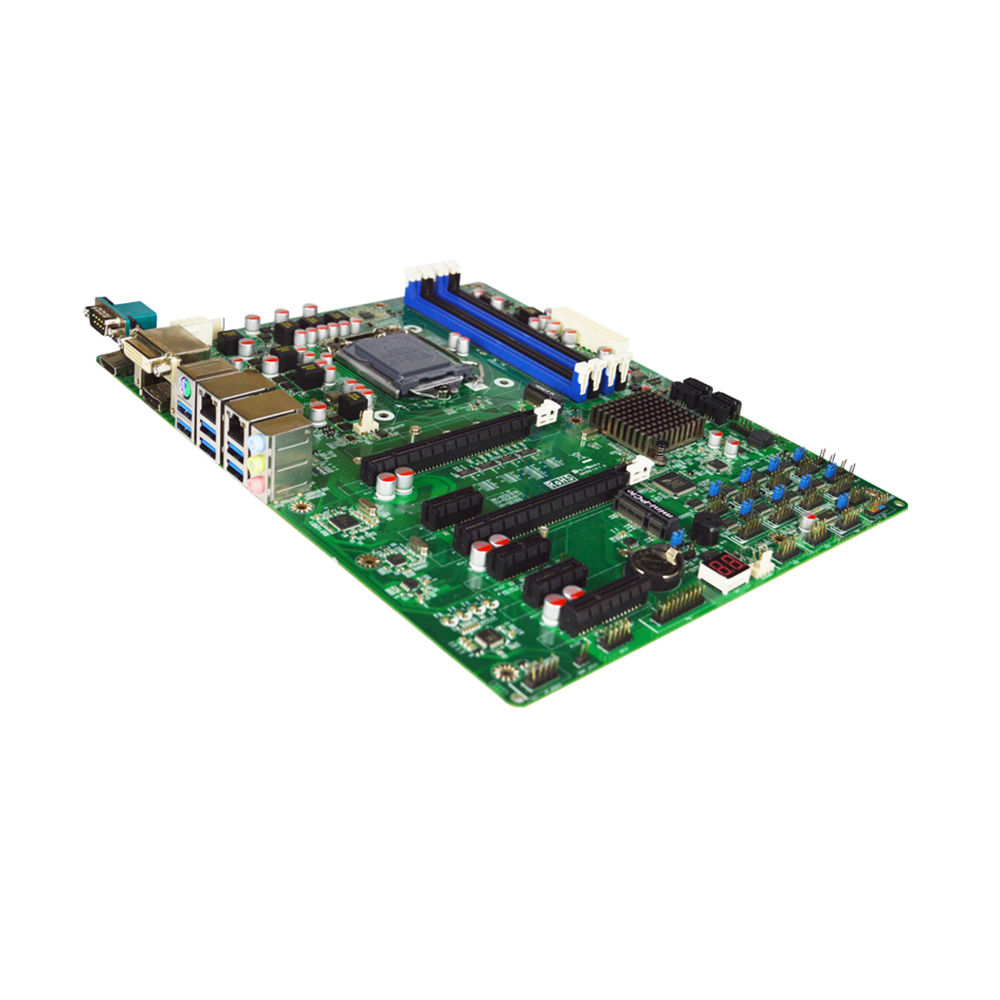

AIMB-Q170-ATX主闆

支持 4 * 288 pin 2133MHz 雙通道 DDR4 SDRAM U-DIMM 最高支持 64GB
英特爾® i219LM & i211AT 千兆網口
支持英特爾主動管理技術 ( iAMT 11.0)
支持 TPM 2.0 功能(néng)
ATX 闆型 (305mm * 244mm)

13671665567

在線客服

客服一

産品詳情

産品特點

産品單頁詳情下(xià)載請點擊
提取碼：1111

Form Factor
Dimensions	– ATX Form Factor(305mm * 244mm)
Processor System
CPU	– Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
Core Number	– (By CPU)
Max Speed	– (By CPU)
L2 Cache	– (By CPU)
Chipset	– Intel® Q170 Express chipset
BIOS	– AMI 128Mb SMT Flash ROM

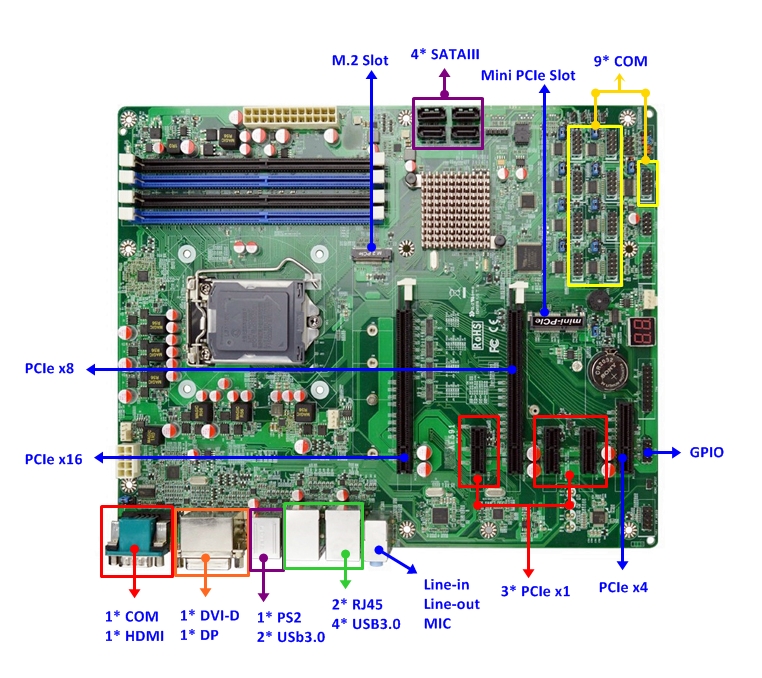

Expansion Slot
PCIe	– 6 [1 x16, 1 x8(shared with x16), 3 x1]
Mini-Pcle	– 1 (full size)
M.2	– 1 [PCIe x4 M‐key, 2242/2260/2280/22110 shared with SATA1(ME FW option)]
Memory
Technology	– 4 * DDR4 2133MHz Dual CH
Max.	– 64GB
Socket	– 4 * U-DIMM
Graphics
Controller	– Intel® Gen9 Graphics supports DX 11/12, OGL4.3/4.4
VRAM	– Shared Memory
DVI-D	– 1 (Max. resolution 1920*1080@60Hz)
HDMI 2.0	– 1 (Max. resolution 4096*2160@60Hz)
Display Port 1.2	– 1 (Max. resolution 4096*2304@60Hz)
MultiDisplay	– Yes (Triple Display)
Ethernet
Ethernet	– 10/100/1000 Mbps
Controller	– GbE LAN: Intel i219LM & i211AT
Connector	– 2 * RJ 45
SATA
Max Data Transfer Rate	– 4 * SATAIII (6.0Gb/s)

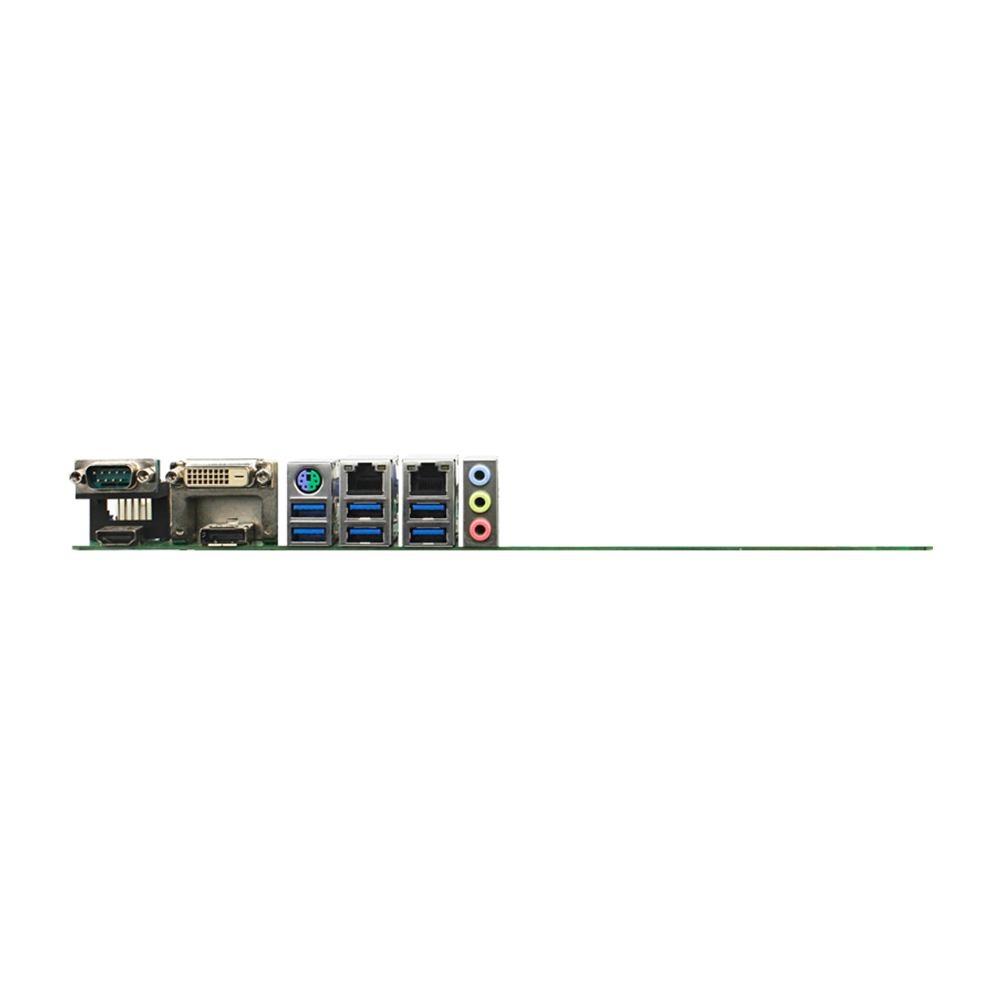

Rear I/O
DVI‐D	– 1
HDMI	– 1
DisplayPort	– 1
Ethernet	– 2
USB	– 6 (6 * USB 3.0)
Audio	– 1 (Line-in / MIC / Line-out
Serial	– 1 (RS232/422/485 with 5V/12V selectable header)
PS2	– 1
Internal Connector
USB	– 4 (4 * USB 2.0)
Serial	– 9 (COM2 RS232/422/485, COM3~10 RS232 with 5V/12V selectable header)
SATA	– 4 * SATAIII (6.0Gb/s), 1 * SATA Express
mPCIe	-1 (full size)
M.2	– 1 [PCIe x4 M‐key, 2242/2260/2280/22110 shared with SATA1(ME FW option)]
TPM Header	– 1
GPIO 8‐bit	– 4in / 4 out
Chassis intrusion	– 1
Audio Header	– 1
Watchdog Timer
Output	– From Super I/O to drag RESETCON#
Interval	– 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR	– 24-pin/8-pin ATX PWR Con
Power On	AT/ATX Supported
Power On	– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications	– CE, FCC, RoHS, REACH
Environment
Temperature	– Operating: 0°C – 60°C
Temperature	– Storage: ‐20°C – 85°C
