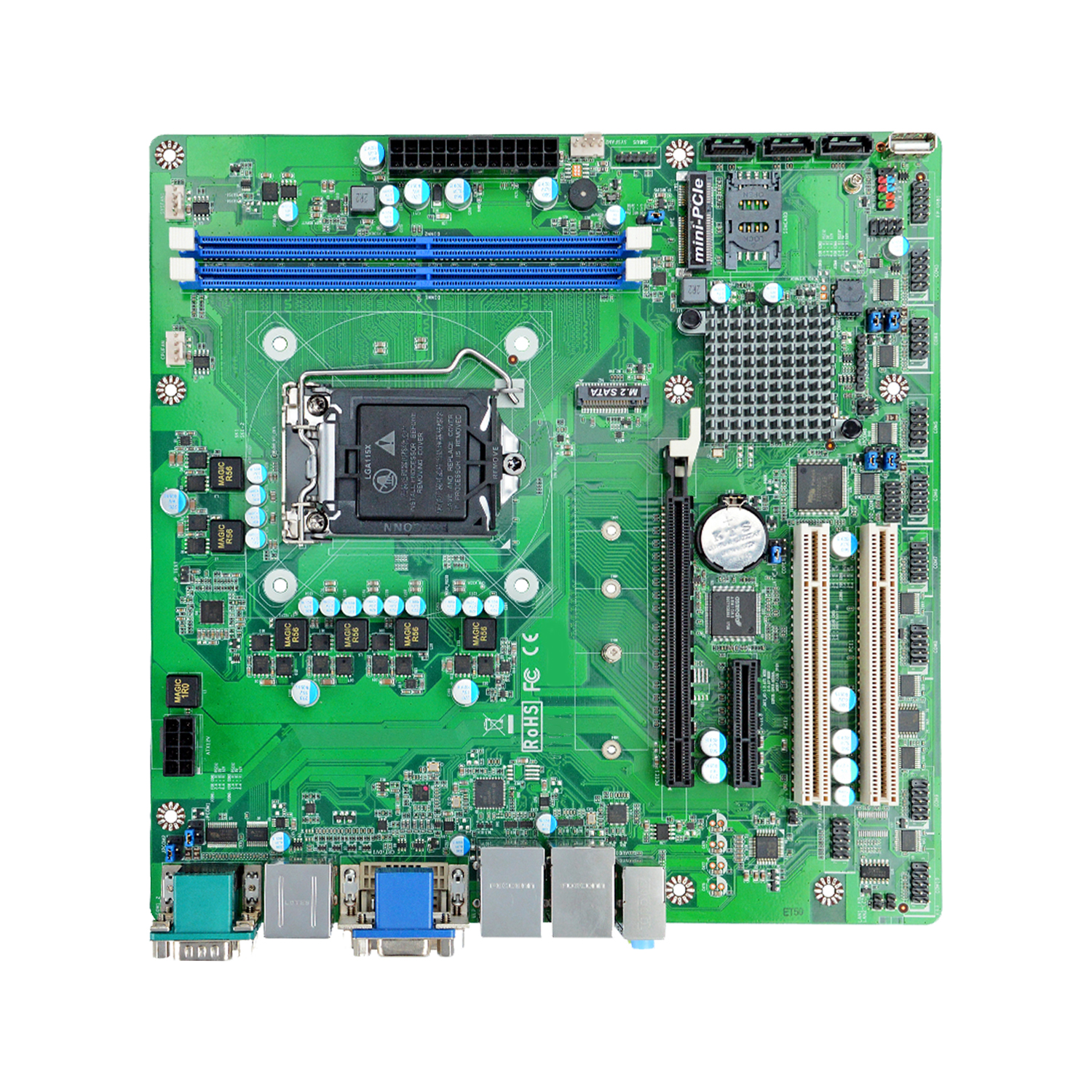

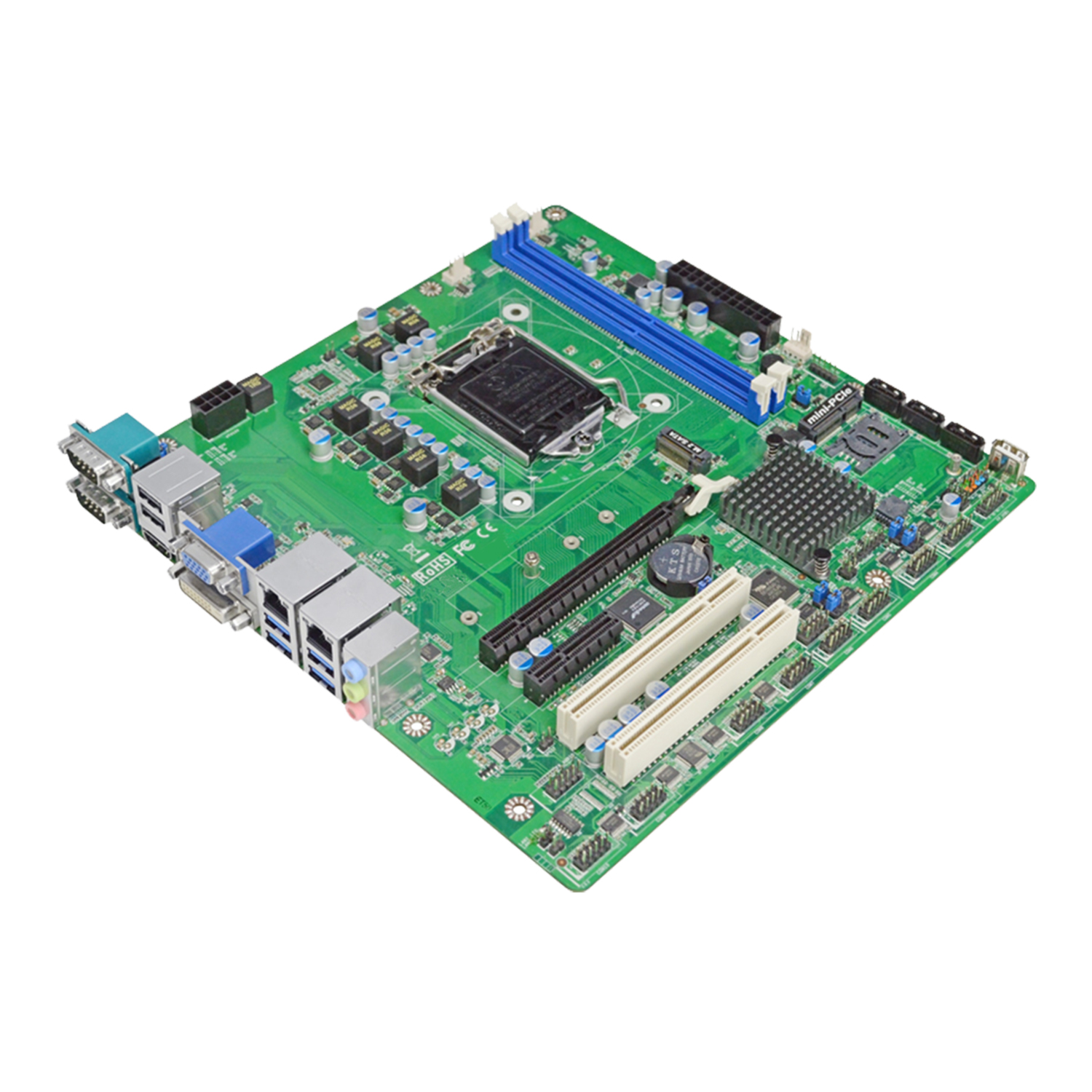

ECB-H11C62B--ITX主闆

英特爾 LGA1151 Socket Core i3, i5, i7 & Pentium 處理器 (最大 65W))
英特爾 H110 Express 芯片
支持雙通道DDR4 2133MHz, 2* UDIMM 槽最高支持 32GB
2* 英特爾千兆網口 (I219-V + I211-AT)
3* SATA III (6Gb/s), 1* M.2 (M-key 2242/2260/ 2280/22110)
4* USB 3.0, 5* USB 2.0，10* COM (COM1 支持RS232/422/485)
支持TPM (可(kě)選)

13671665567

在線客服

客服一

産品詳情

産品特點

産品單頁詳情下(xià)載請點擊
提取碼：1111

Dimensions	Micro ATX (244 * 244mm)
CPU	Intel LGA1151 SkyLake/KabyLake Processor (Max. 65W TDP)
Core Number	(By CPU)
Max Speed	(By CPU)
Cache	(By CPU)
Chipset	H110
BIOS	AMI Flash ROM
Expansion	1* Mini PCIe (full size)，1* PCIex16 slot，1* PCIex4 slot，2* PCI– 1* SIM card slot
Memory	Dual CH DDR4 2133MHz UDIMM，Max.32GB，2* UDIMM Socket
Controller	Intel HD Graphics
VRAM	Shared Memory
HDMI	1 (Max Resolution: 1920×1200@60Hz)
DP	1 (Max Resolution: 1920×1200@60Hz)
eDP	1 (Max Resolution: 4096×2160@30Hz)
MultiDisplay	Dual Displays
Ethernet	Ethernet:10/100/1000 Mbps；Controller: PCIe GbE: 1* i219V, 1* i211AT；
Ethernet	Connector:2 * Rj45
Audio	CODEC:HD Audio: Realtek ALC662；Channel：6 Channel
SATA	3* SATAIII

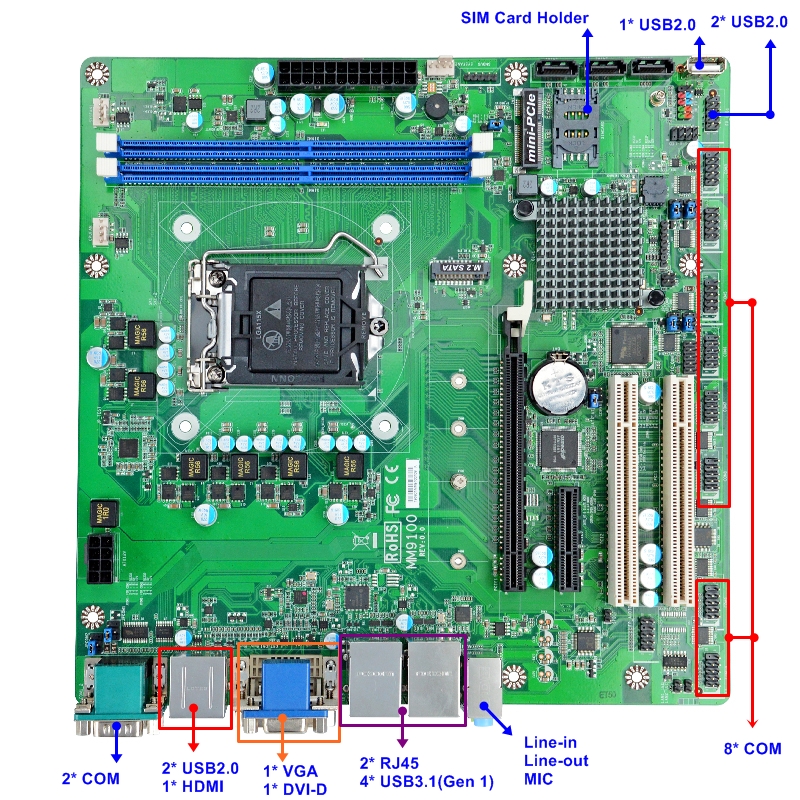

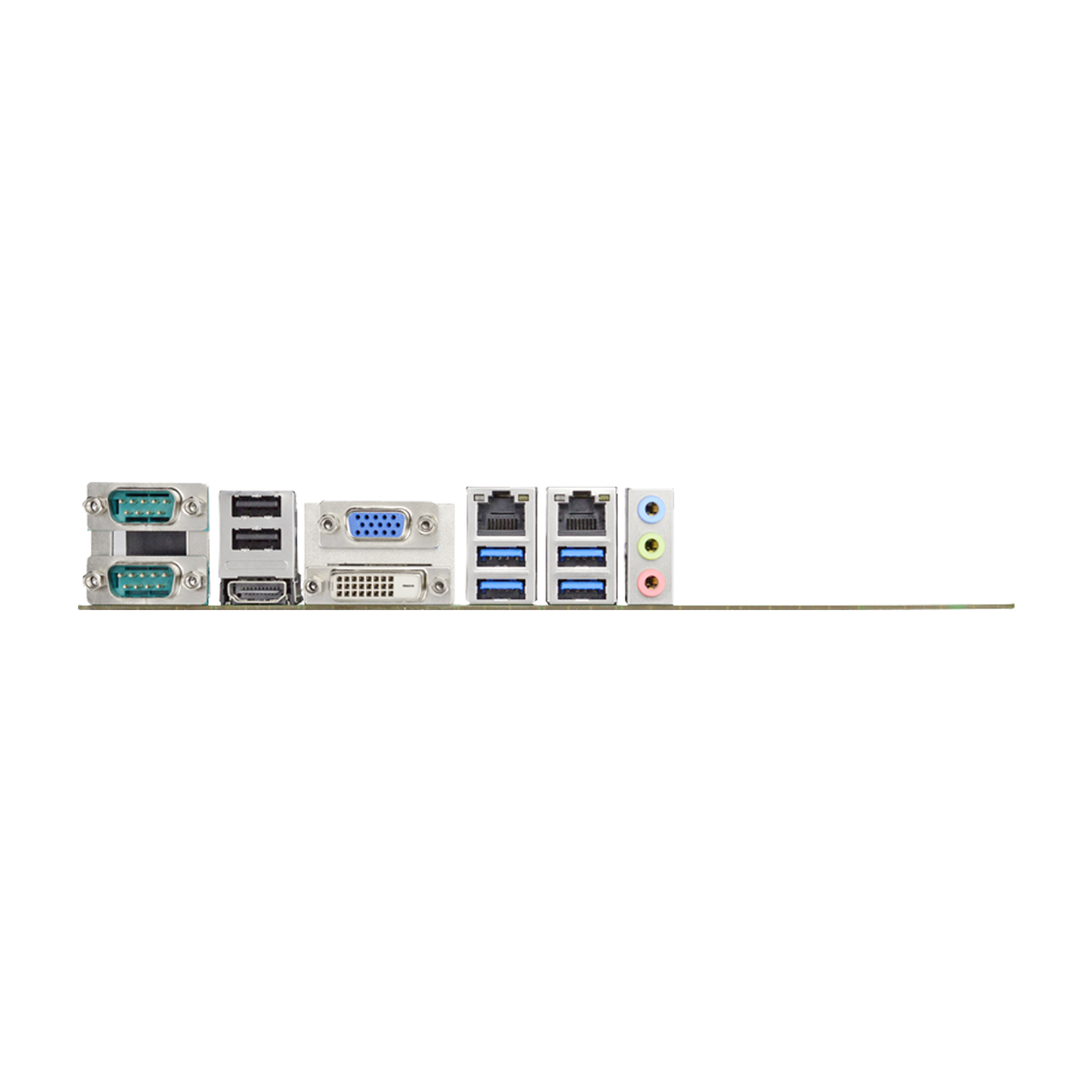

Rear I/O	1* VGA， 1* HDMI，1* DVI-D，2* Ethernet Rj45，4* USB 3.1 (Gen. 1) & 2* USB2.0
Rear I/O	Line-In, Line-Out, MIC， 2* COM (COM 1 support RS232/422/485)
Internal Connector	2* USB 2.0, 1* USB2.0 (Vertical type)
	1* PS/2– 8* COM
	3* SATAIII
	1* SIM card slot
	1* Mini PCIe (full size)
	1* M.2 M-key 2242/2260/2280/22110 (SATA I/F)
	1* GPIO (8 bit)
	1* Chassis intrusion
	1* Audio Header
	1* SMBUS
	1* AT mode
	Support onboard TPM (option)
Output	From Super I/O to drag RESETCON#
Interval	256 segments (10sec ~ 255min)
Input PWR	ATX PWR (8+24 pin)
Power On	AT/ATX Supported
	AT: Directly PWR on as Power input ready
	ATX: Press Button to PWR on after Power input ready
Certifications	CE, FCC, LVD, RoHS, REACH
Temperature	Operating: 0°C ~ 60°C
Temperature	Storage:?-20°C?~?85°C

The ECB-H11C62B is Micro-ATX form factor board adopts the Intel 6th and 7th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports two UDIMM DDR4 2133Mhz memory, up to 32GB. Featuring the integrated Intel Gigabit Ethernet controller, the ECB-H11C62B offers two 10/100/1000Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 M-key offer storage devices. One Mini PCIe interface, four USB3.1 Gen.1 ports, five USB2.0/1.0 ports and ten COM ports provide versatile expansion. The PCIex16 slot can support Jetway riser card for different expansion. The ECB-H11C62B offers one HDMI 1.4 port, one DVI-D port and one VGA port which can support dual independent displays. Because of the above features, ECB-H11C62B is suitable for ATM, Industrial PCs, Factory Automation applications.
