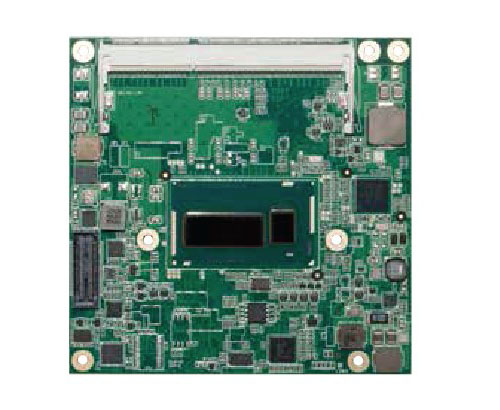

COME-QM872--COME主闆

Highest Performance COM Express Type 6

4th Generatin Intel® Core™ processor family

Bettr transcode HD-HD, HD Video Conferencing

Improved Graphics Performance, DirectX®11

Ultra low standby power consumptin

COM Express® Compact, (95x95mm), Type 6 Connector Layout

13671665567

在線客服

客服一

産品詳情

産品單頁詳情下(xià)載請點擊

提取碼：1111

産品型号	COME-QM872
CPU型号	Intel® 第四代® i3/i5/i7
芯片	Integrated mobile Intel® 8 Series Chipset: Intel® QM87/HM86 @ planned Celeron variants
内存	2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte
網絡接口	Intel® I218-LM GbE LAN Controller with AMT 9.5 support
擴展接口	N/A
顯示接口	VGA插針+HDMI插針+DVI插針+DP插針
音頻	Digital High Defiitin Audio Interface with support for multile audio codecs
COM接口	1*COM
風扇	無風扇
看門狗	1-255秒/分，看門狗超時中斷或複位系統
I/O接口	4x PCI Express™ GEN. 2.0 lanes, 4x Serial ATA® RAID 0/1/5/10 support,
	2x ExpressCard®, 2x USB 3.0 (XHCI), 8x USB 2.0 (EHCI)
	LPC bus, I²C bus (fast mode, 400 kHz, multimaster)
電源類型	Typ. applicatin: tbd., see manual for full details, CMOS Battry Backup ACPI 4.0 with battry support
工作溫度	0℃ ～ 60℃
存儲溫度	-20℃ ～ 80℃
相對(duì)濕度	5%-95%(無凝霜)
尺寸	95x95 mm (3.74"x 3.74")
