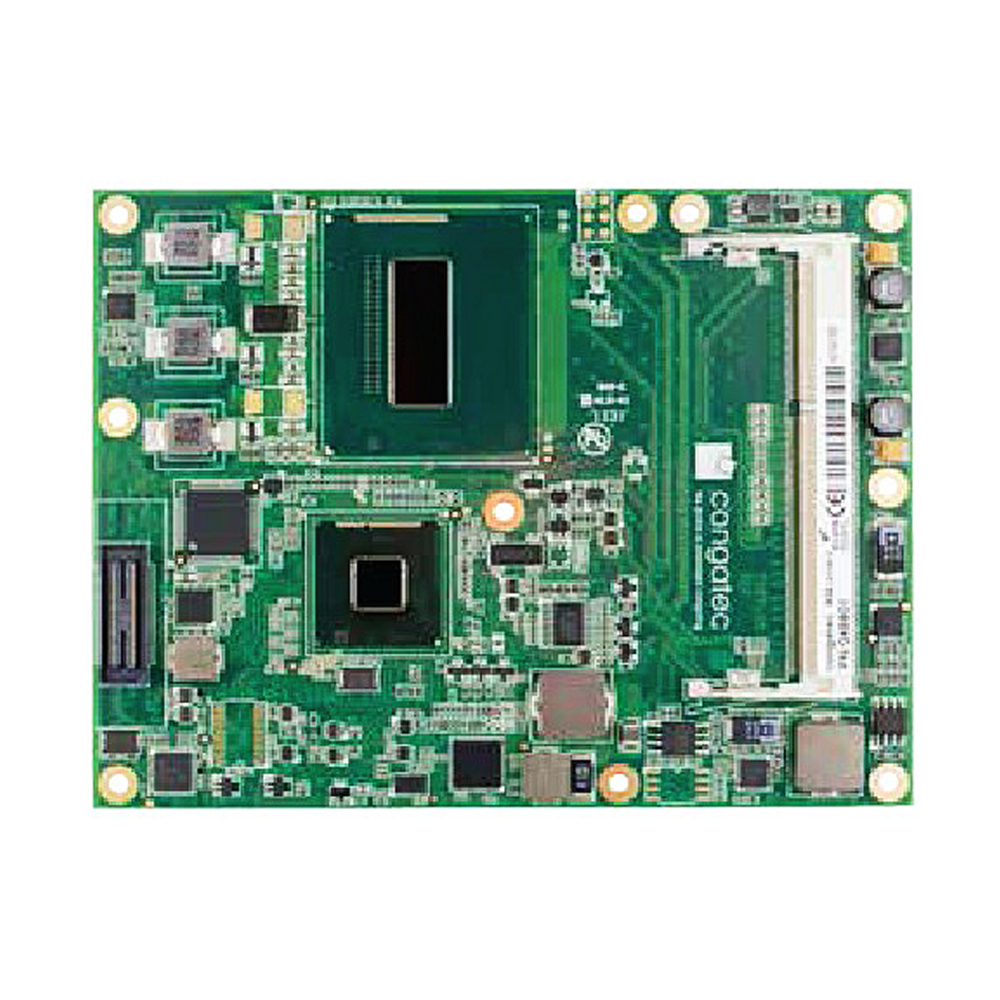

産品型号	COME-QM876
CPU型号	Intel® 第四代® i3/i5/i7
芯片	Mobile Intel® 8 Series Chipset: Intel® QM87 for Intel® Core™ processors / HM86 @ planned Celeron variants
内存	2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 16GByte
網絡接口	Intel® I218-LM GbE LAN Controller with AMT 9.0 support
擴展接口	N/A
顯示接口	LVDS+VGA插針+HDMI插針+DVI插針+DP插針
音頻	Digital High Defiitin Audio Interface with support for multile audio codecs
COM接口	1*COM
風扇	無風扇
看門狗	1-255秒/分，看門狗超時中斷或複位系統
I/O接口	7x PCI Express™ GEN. 2.0 lanes, 1x PEG GEN 3.0 (8GT/s)
	4x Serial ATA® 6 Gb/s, RAID 0/1/5/10 support,
	2x ExpressCard®, 4x USB 3.0 (XHCI), 8x USB 2.0 (EHCI), LPC bus
	I²C bus (fast mode, 400 kHz, multimaster)
電源類型	Typ. applicatin: tbd., see manual for full details, CMOS Battry Backup,ACPI 4.0 with battry support
工作溫度	0℃ ～ 60℃
存儲溫度	-20℃ ～ 80℃
相對(duì)濕度	5%-95%(無凝霜)
尺寸	95 x 125mm (3.74"x 4.92")

COM Express Type 6 pinout Basic form factor
4th Gen. Intel® Core® i7 processor up to 2.4 GHz
3x DisplayPort 1.2, up to 4k resolutin
(QFHD=3840x2160@60Hz)
Up to 13% higher computig performance*
Up to 32% higher 3D graphics performance*
Formfactor COM Express™ Basic, (95 x 125 mm)
Type 6 Connector Layout
compared to previous generatin
